APPLICATION

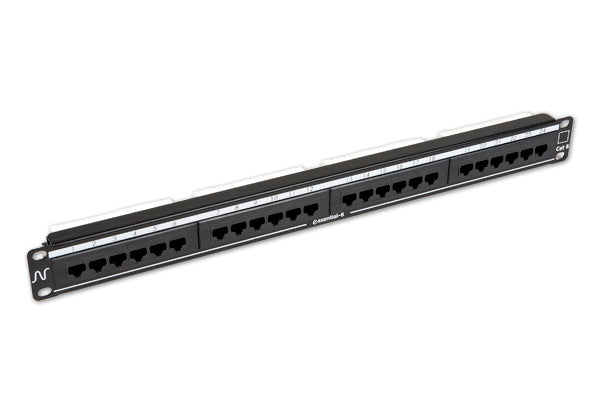

The Essential-6 Rear Connect Panel is based on 19 inch frame dimensions and has 24 Category 6 RJ45 ports. It supports all Class E applications up to 250 MHz. When installed in conjunction with Essential-6 cable and outlets, a 25 year Class E Link Warranty can be obtained through the Nexans website.
DESIGN
The Essential-6 Rear Connect Panel is compatible with the complete Essential-6 range and is designed to be used with unshielded Category 6 cable with solid wire from 24 to 22 AWG. The panel has a textured black finishing. The RJ45 ports have screen-printed numbering 1-24 and a labeling surface for patch panel identification is foreseen on the right-hand side of each panel.
PERFORMANCE
The Essential-6 patch panels are compliant with the specifications of ISO/IEC 11801 and IEC 60603-7.
INSTALLATION
- Fast and easy termination of IDC blocks with 110 or LSA+ punchdown tool
- Wiring according to colour code T568A or T568B.
- Supplied with fixings, cable ties and cable stripping tool.
- For detailed installation instructions, please refer to the Instruction Sheet enclosed with every panel.
| CARACTÉRISTIQUES DE CONSTRUCTION | |
|---|---|
| Type de connecteur | RJ45 and 110/LSA+ IDC |
| CARACTÉRISTIQUES DIMENSIONNELLES | |
| Unité de hauteur | 1U |
| CARACTÉRISTIQUES D'UTILISATION | |
| Catégorie | Cat. 6 |
| Range | essential-6 |
| Fonction du composant | Tableau de commutation |
| Nombre de ports | 24 |
